Thông tin chi tiết sản phẩm:
|
| Yếu tố hình thức / Chiều cao: | 2U Rack Server | Bộ xử lý: | Lên đến 2x bộ xử lý Intel® Xeon® có thể mở rộng thế hệ thứ 3 |
|---|---|---|---|
| Khoang ổ đĩa: | Ổ đĩa lên tới 20x 3,5 inch hoặc 40x 2,5 inch | Ký ức: | Khe cắm bộ nhớ 32x DDR4; |
| Khe cắm mở rộng: | Lên đến 8 khe cắm PCIe 4.0, 1x khe cắm OCP 3.0 | GPU: | GPU có chiều rộng đơn lên tới 8x hoặc GPU có chiều rộng gấp đôi gấp 3 lần |
| Giao diện mạng: | Bộ điều hợp LOM được cài đặt trong khe OCP 3.0; bộ điều hợp PCIe | ||
| Làm nổi bật: | Lenovo SR650 V2 rack server,2U rack server with DDR4,Lenovo SR650 V2 server host |
||
| Form Factor/Height | 2U rack server |
| Processors | Up to 2x 3rd generation Intel® Xeon® Scalable processors, up to 40 cores, up to 270W TDP |
| Drive Bays | Up to 20x 3.5-inch or 40x 2.5-inch drives; Up to 32x NVMe drives supported with NVMe switch adapters; 2x M.2 boot drives (RAID 1); 2x 7mm boot drives in rear (RAID 1) |
| Memory | 32x DDR4 memory slots; Maximum 8TB using 32x 256GB 3DS RDIMMs; Supports up to 16x Intel® Optane™ Persistent Memory 200 Series modules (PMem) |
| Expansion Slots | Up to 8x PCIe 4.0 slots, 1x OCP 3.0 slot, 1x cabled HBA/RAID adapter that doesn't occupy a standard PCIe slot |
| GPUs | Up to 8x single-width GPUs or 3x double-width GPUs |
| Network Interface | LOM adapter installed in the OCP 3.0 slot; PCIe adapters |

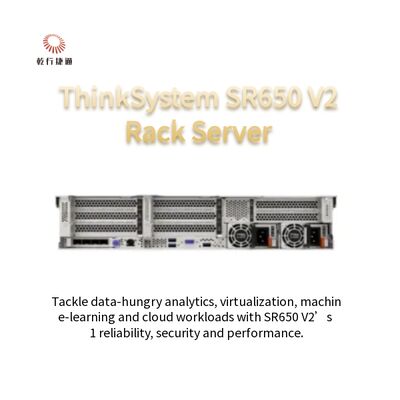

| Ports | Front: 1x USB 3.1 G1, 1x USB 2.0 with XClarity Mobile support, 1x VGA (optional), 1x external diagnostics handset port Rear: 3x USB 3.1 G1, 1x VGA, 1x RJ-45 (management), 1x Serial port (optional) |
| HBA/RAID Support | SW RAID standard; optional HW RAID with/without cache or 8/16-port SAS HBAs |
| Power | Dual redundant power supplies (up to 1800W Platinum) |
| Systems Management | Lenovo XClarity Controller |
| OS Support | Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information. |
| Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9x5; optional service upgrades |
Future Defined Data Center
Lenovo delivers engineered, tested and certified IT solutions that are high performance, scalable and cost-effective. By combining industry-leading x86 server technology and reliability, partnering to deliver best-in class co-innovation and providing end-to-end peace of mind with Lenovo ThinkShield, XClarity, and Services, Lenovo solutions enable customers to use real-time data to drive actionable insights. As the compute for these solutions, ThinkSystem SR650 V2 makes businesses smarter by providing support for data analytics, hybrid cloud, hyperconverged infrastructure, video surveillance, high performance computing and much more.
Workload-Optimized Support
ThinkSystem SR650 V2 is tuned for Intel® Optane™ persistent memory 200 series. With this second generation of high performing persistent memory tier optimized for 3rd generation Intel® Xeon® Scalable processors, it offers significantly lower data latency, higher capacities and greater value. With data stored closer to the processor, applications can access data faster driving swifter response times for real-time analytics, financial transactions, electronic medical records, fraud detection, and much more.
Flexible Storage
Industry leading backplane design for Lenovo AnyBay™ features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 & U.3 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
