Thông tin chi tiết sản phẩm:
|
| Yếu tố hình thức / Chiều cao: | Giá 2U | Bộ xử lý (tối đa)/Bộ đệm (tối đa): | Tối đa hai bộ xử lý Intel® Xeon® 22 nhân dòng E5-2600 v4 |
|---|---|---|---|
| Bộ nhớ (tối đa): | Lên đến 1,5TB – 2400 MHz – với LRDIMM bộ nhớ TruDDR4 64GB | Vịnh đĩa: | Lên đến 24 ổ cứng/SSD 2,5 inch phía trước và 4 phía sau; hoặc lên tới 12 3,5 inch |
| Bộ nhớ trong tối đa: | Lên đến 120TB | Hỗ trợ RAID: | Khe cắm chuyên dụng 12Gbps cho RAID đầu tiên; hỗ trợ tối đa bốn bộ điều hợp RAID |
| Làm nổi bật: | 2U rack storage server,X3650 M5 server chassis,Xeon E5-2609 V3 storage server |
||

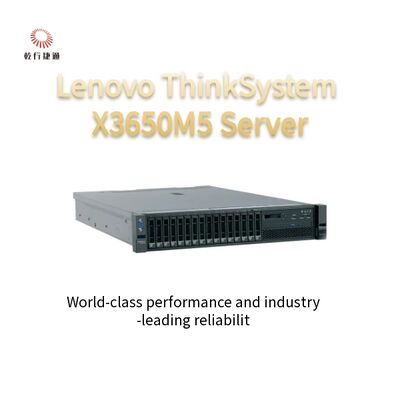

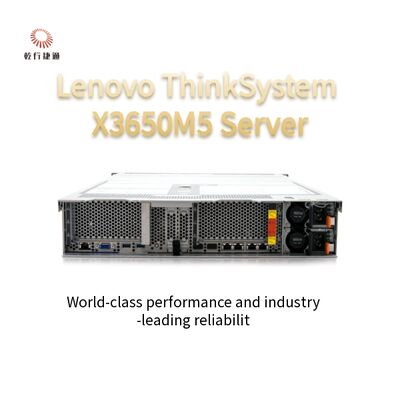

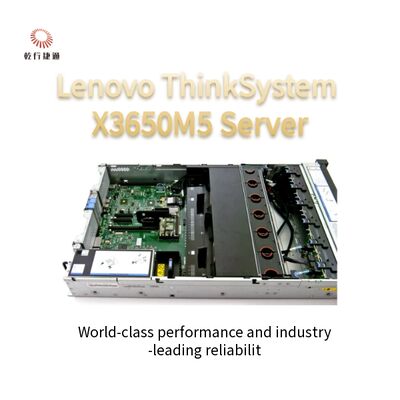

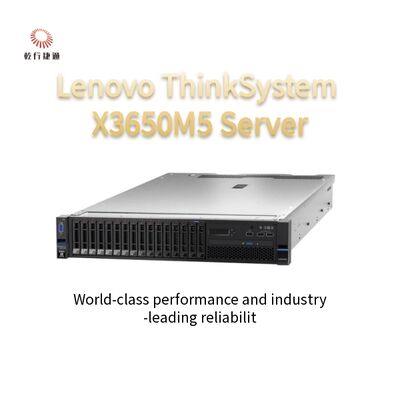

The new System x3650 M5 2U-high 2-socket rack server delivers capabilities to run a diverse set of complex workloads, 24/7, with leadership reliability, efficiency, and security. Equipped with up to two Intel E5-2600 v3 series processors and faster, power-saving DDR4 memory, the x3650 M5 tackles Cloud, Analytics, Big Data, Virtual Desktop, and other business-critical workloads. The x3650 M5 supports up to four 12 Gbps RAID controllers for enhanced data protection and performance.
| Form Factor/Height | 2U Rack |
| Processor (max)/Cache (max) | Up to two 22-core Intel® Xeon® processors E5-2600 v4 series /Up to 55MB per processor |
| Memory (max) | Up to 1.5TB – 2400 MHz – with 64GB TruDDR4 Memory LRDIMMs; system supports RDIMM/LRDIMM |
| Disk Bays | Up to 24 front and 4 rear 2.5-inch HDDs/SSDs; or up to 12 3.5-inch and 2 rear 3.5-inch HDDs + 2 2.5-inch HDDs/SSDs; or up to 8 3.5-inch HDDs and 2 rear 3.5-inch or 2.5-inch HDDs/SSDs; up to 8 2.5-inch NVMe PCIe SSDs on 2.5-inch configurations |
| Maximum Internal Storage | Up to 120TB |
| RAID Support | 12Gbps dedicated slot for the first RAID; support for up to four RAID adapters |
| Power Supply (std/max) | 1/2 redundant 550W AC, 750W AC, 900W AC, 1500W AC, 900W DC 80 PLUS® Platinum, or 750W, 1300W AC 80 PLUS Titanium |
| Hot-Swap Components | Power supplies, fan modules and HDDs/SSDs |
| Network Interface | 4 × 1GbE (std.) and 1 x IMM; optional 10/40GbE ML2 or PCIe adapter; Trusted Platform Module built-in |
| Expansion Slots | 1 – 8 PCIe 3.0 slots (supports up to 4 GPUs and up to 1 x ML2) and 1 dedicated RAID slot |
| USB Ports/VGA Ports | Up to 3 x USB 2.0 front, 2 x USB 3.0 rear, 1 x USB 2.0 internal for hypervisor/1 front (optional) and 1 back |
| Energy-Efficiency | ENERGY STAR® compliance (model dependent); up to 40ºC operating temp; 2 fan zones with up to 6 fans |
| Systems Management | Lenovo XClarity Administrator with mobile option; Lenovo XClarity Pro software bundle; Lenovo XClarity Energy Manager; IMM2.1 |
| Operating Systems (OS) Supported | Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere - (Optional USB Key or SD Media Adapter) |
| Limited Warranty | 3-year customer replaceable unit and onsite limited warranty, next business day 9x5; upgrades available |
The x3650 M5 integrates top-notch security and reliability features. Unique System x security features and practices at the firmware and hardware level ensure that all firmware is validated prior to execution. You can now also deploy self-encrypting drives (SEDs) using the optional IBM Security Key Lifecycle Manager (SKLM). Diagnostic tools such as Predictive Failure Analysis and the Next-Generation Diagnostics Panel offer descriptive error codes and status indicators for easy serviceability and reduced downtime and labor costs.
Built on an innovative architecture, the x3650 M5 offers unique energy efficient features for data center cost savings. Dual fan zones with an N+1 redundancy design maintain advanced cooling performance and efficiency, supporting operation in up to 40 degrees Celsius environments. Available 80 PLUS Titanium power supplies can deliver up to 96 percent efficiency together with system power active/standby modes, saving energy and reducing heat. Add the optional 10/40 GbE ML2 or PCIe adapter from industry leaders such as Broadcom, Emulex, Intel, Mellanox, and QLogic, and gain faster I/O speeds. For extended performance or workloads requiring graphics processing units (GPUs), the x3650 M5 can support up to two 300 W GPU cards.
Notices:
1. Open the packaging, check the products carefully, and take them gently.
2. The product is a brand new original unopened equipment.
3. All products 1 year warranty, and the buyer is responsible for the return shipping cost.
International Buyers Please Note:
Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility.
Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying.
Customs fees are normally charged by the shipping company or collected when you pick the item up. These fees are not additional shipping charges.
We won't under-value merchandise or mark the item as a gift on customs forms. Doing that is against U.S. and international laws.
Customs delays are not the responsibility of the seller.
