Thông tin chi tiết sản phẩm:
|
| Đặc trưng: | S5130S-52P-PWR-EI-AC | Công suất chuyển đổi cổng: | 104Gbps |
|---|---|---|---|
| Công suất chuyển đổi hộp: | 336Gbps | Flash/SDRAM: | 256MB/512MB |
| Kích thước(W×D×H): | 440×400×43,6mm | Cổng 10/100/1000 Base-T: | 48 |
| Làm nổi bật: | H3C S5130S-EI gigabit access switch,H3C S5130S-52P-PWR-EI-AC switch,enhanced gigabit fibre channel switch |
||

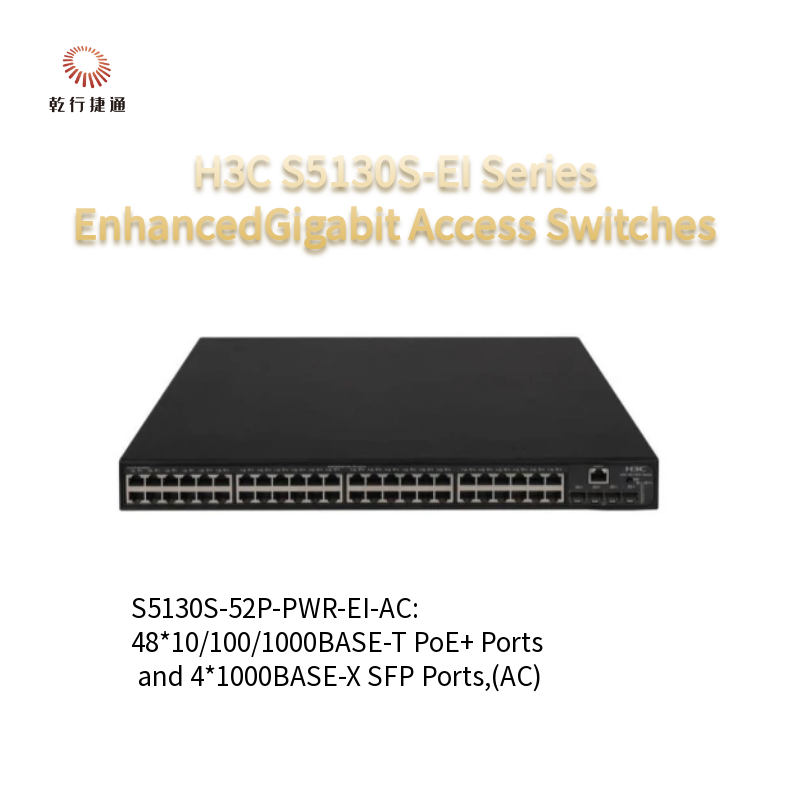

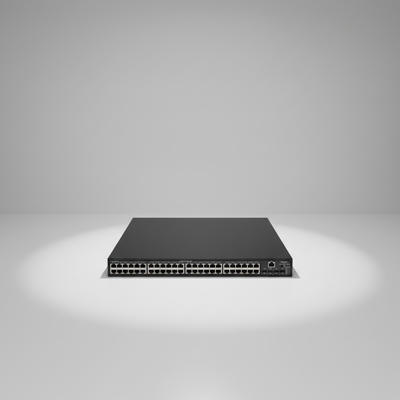

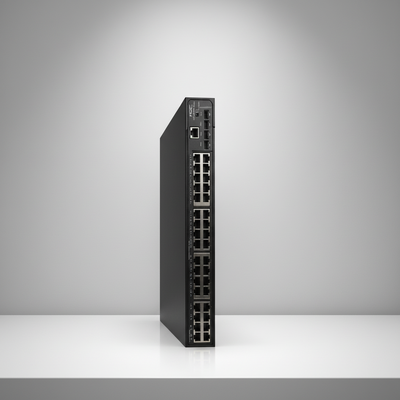

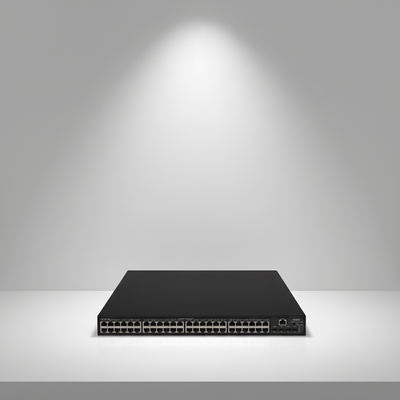

H3C S5130S-EI Series Enhanced Gigabit Access Switches
Product Overview
H3C S5130S-EI Series Switches – A simple (fixed power design), cost-effective and easy to deploy access switching solution with POE+ that offer enhanced security, high-density GE and 10GbE uplinks, static route, RIP, OSPF, SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high-density campus access.
| Features | S5130S-28P-HPWR-EI-AC | S5130S-52P-PWR-EI-AC |
| Port Switching Capacity | 56Gbps | 104Gbps |
| Forwarding Capacity | 42Mpps | 78Mpps |
| Box Switching Capacity | 336Gbps | 336Gbps |
| CPU | 1 Core, 800MHz | 1 Core, 800MHz |
| Flash/SDRAM | 256MB/512MB | 256MB/512MB |
| Latency (64byte/μs) | GE: < 5μs | GE: < 5μs |
| Dimensions(W × D×H) | 440×260×43.6 mm | 440×400×43.6 mm |
| Weight | ≤4.5kg | ≤6kg |
| 10/100/1000 Base-T port | 24 | 48 |
| SFP Port | 4 (4*Base-T combo) | 4 |
| Maximum Stacking Bandwidth | 16Gbps | 16Gbps |
| Maximum Stacking Num | 9 | 9 |
| Input Voltage | AC: Rated voltage range: 100V~240V AC, 50/60Hz |
AC: Rated voltage range: 100V~240V AC, 50/60Hz |
| Power Consumption(full configuration) | MIN: AC: 15W MAX: AC: 443W (PoE 370W) |
MIN: AC: 36W MAX: AC: 467W (PoE 370W) |
| Fan NUM | 3 | 1 |
| MTBF(Year) | 52.81 | 50.19 |
| MTTR(Hour) | 1 | 1 |
| Operating Temperature | -5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
-5℃ ~ 50℃(normal operating temperature) -5℃ ~ 45℃(When using transceiver modules with maximum transmission distance < 80km) -5℃ ~ 40℃(When using transceiver modules with maximum transmission distance ≥ 80km) |
| Storage Temperature | -40℃ ~ 70℃ | -40℃ ~ 70℃ |
| Operating & Storage Relative Humidity | 5% RH to 95% RH, non-condensing | 5% RH to 95% RH, non-condensing |
